Commodity: YOUSHANG/ YOUPIN Series Smart Key Panel

Model：HKL-M4486T-01-口 ; HKL-M4486T-02-口

Application Scenarios:

Lighting control system in buildings,such as home,hotel,large buildings etc

Product Overview:

This touch panel is KNX communication protocol panel. It can used to control switches,dimming,curtains,proportional value transmission,threshold value transmission,scenes,combination functions,etc

Key feature:

Switch and dimming function
Threshold sending function
Proportional value sending function
Scene function
Curtain function
RGB value transmission function
Combined transmission function
LED indication function
Button lock & unlock function

Product Name	KNX Youshang series button panel	KNX Pinshang series button panel
Model	HKL-M4486T-01-口	HKL-M4486T-02-口
Power Supply	EIB 21-30VDC, obtained through EIB bus
Operating Voltage	Auxiliary power supply 21~30VDC
EIB Static Current/ Power Consumption	EIB<12mA/EIB<360mW
Auxiliary Power Supply Static Current/ Power Consumption	DC <50mA /DC <1W
Number of Panel Buttons	1/2/3/4/6 Key Programming buttons and red LED
Operations and Instructions	The back cover programming button is used for device programming The red indicator light: represents entering programming mode The green indicator light: flashing light indicates that the device is running normally
Protection level	IP 20, EN 60 529
Storage	-25 ℃...+55 ℃
Transportation	-25 ℃...+70 ℃
Environmental Conditions	Maximum air humidity<93%, except for condensation
Design	Embedded Installation Devices
Panel Material Plastic	Aluminum; AI2O3
Button Material	Plastic	Plastic
Colors	Grey, Black, Champagne	Silver, Black, Champagne
Dimensions Weight	86×86×36MM ≈0.1KG	86×86×36MM ≈0.15KG

Model Selection:

HKL-M4486T-01-口 , HKL-M4486T-02-口

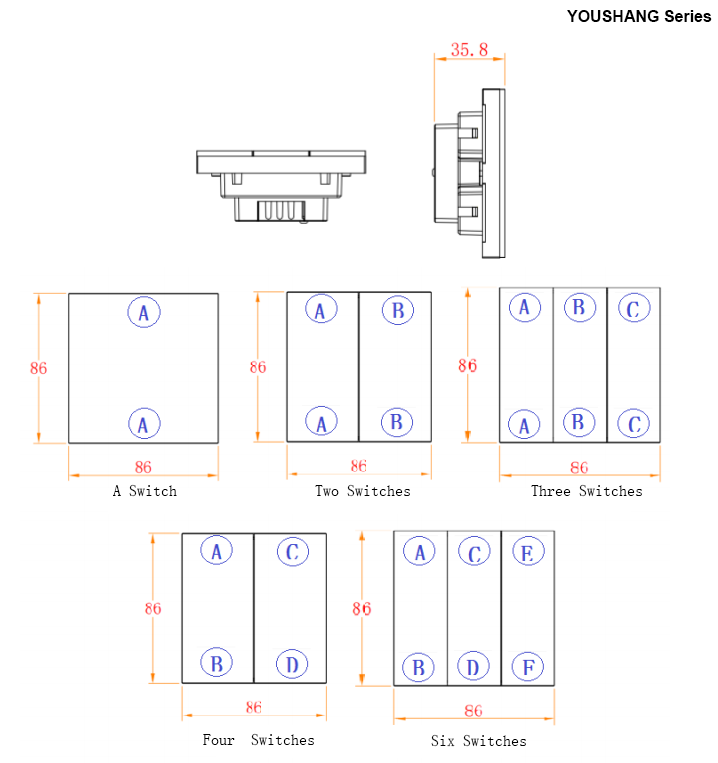

Sample:

HKL-M4486T-01-01

YOUSHANG ONE KEY SMART KEY PANEL

HKL-M4486T02-01

YOUPIN ONE KEY SMART KEY PANEL

YOUSHANG/ YOUPIN Series Smart Key Panel
