HEF600-43LT-H Intelligent and Safe Electricity Monitoring Device
Application Scenarios:Used in intelligent buildings,high-rise apartments, hotels,restaurants,commercial buildings,industrial and mining enterprises,petrochemical industry,culture ,education and health,finance,telecommunications and other field.
PRODUCT OVERVIEW
The products adopts advanced micro controller technology,High integration,small size,easy installation,focus intelligence,digitalization,networking in one,is the ideal choice for building monitoring device prevention monitoring,system insulation aging estimation,etc,while upgrading the original RS485 communication to GPRS wireless communication mode,which greatly solves the difficult situation of on-site wiring and improves work efficiency.As an advanced intelligent and digital acquisition component,the intelligent device has been widely used in various control systems,SCADA systems and energy management systems.
KEY FEATURE
|
parameter |
Data |
|
|
Input |
Normal value |
Voltage:AC220V current:1.5（6）A |
|
|
Over load |
1.2times(short time) |
|
|
Impedance |
Current side:≤0.1Ω |
|
|
Frequency |
50Hz |
|
Output |
Power pulse output |
Active power pulse lamp output |
|
|
Switch value output |
2 ways switch value output(optional) |
|
Action delay time |
0.1~60S (adjustable) |
|
|
accuracy |
0.5S |
|
|
Puslse constant |
Via transformer:6400imp/kWh |
|
|
Voltage range |
AC：0.7Un~1.2Un |
|
|
Power consumption |
<5VA |
|
|
Insulation resistance |
≥100MΩ |
|
|
Power frequency withstand voltage |
2KV/1min(AC efficiency value) |
|
|
Working life |
≥50000h
|
|
|
Environment |
Working temperature： -10℃~+50℃;humidity： ≤90% no condensation,no corrosive gas |
|
|
Storage |
-25℃~+70℃ |
|
|
Elevation |
≤2000m |
|

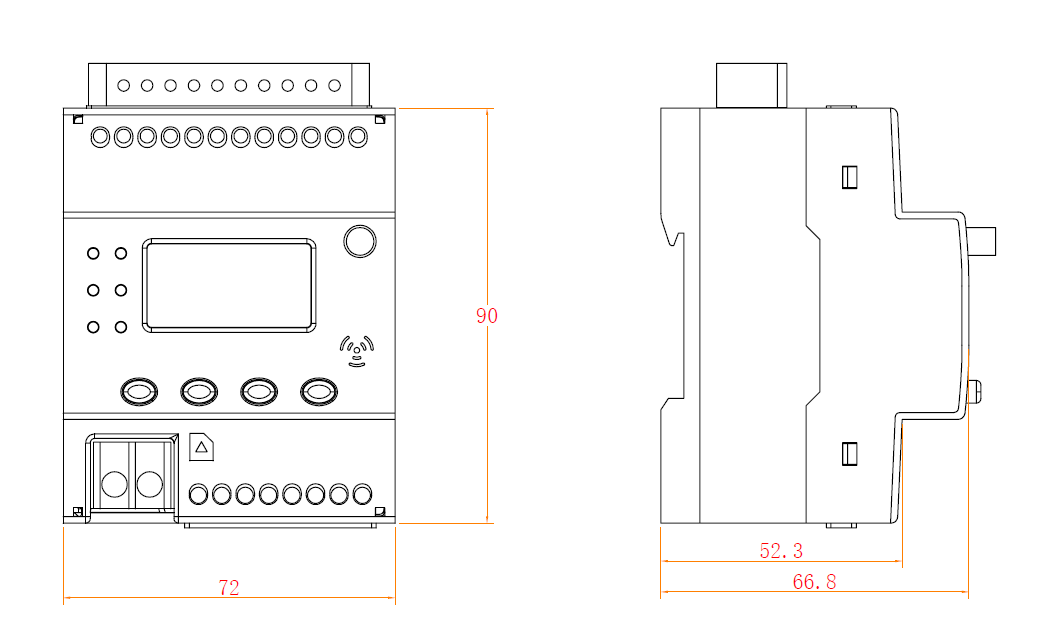

.png)
HEF600-43LT-H Intelligent and Safe Electricity Monitoring Device
